4" PASLANMAZ POMPALAR ( KADEME+MOTOR)

Kullanım Yerleri: Su temini, sulama sistemleri, zemin suyu alçaltma, basınçlandırma, endüstriyel uygulamalar

Temiz, içinde lif ve katı maddeler bulunmayan agresif olmayan sıvıların pompalanması

Çalışma Koşulları: Max. Sıvı Sıcaklığı: 40 ºC,   Max. Kum miktarı: 50g/lt,   Motor Koruma Sınıfı: IP68,     Max. Çalışma Sesi: 70dB,  Motor Dönüş Yönü: iki Yönlü / CW CCW

Özellikler:  Pompalar standart olarak AISI 304 kalite paslanmaz çelikten üretilmektedir. AISI 304=DIN W.-Nr.1.4301

Daha agresif sıvılar için AISI 316 alternatif olarak mevcuttur. AISI 316=DIN W.-Nr.1.4401

Deniz suyu uygulamalarında katodik koruma önerilmektedir. Motor kapakları standart olarak GG 25, opsiyonel olarak, 304 ve  316 üretilmektedir.  Tonaj(Q): 1-350 m3/h,   Basma Yüksekliği max.: 550m

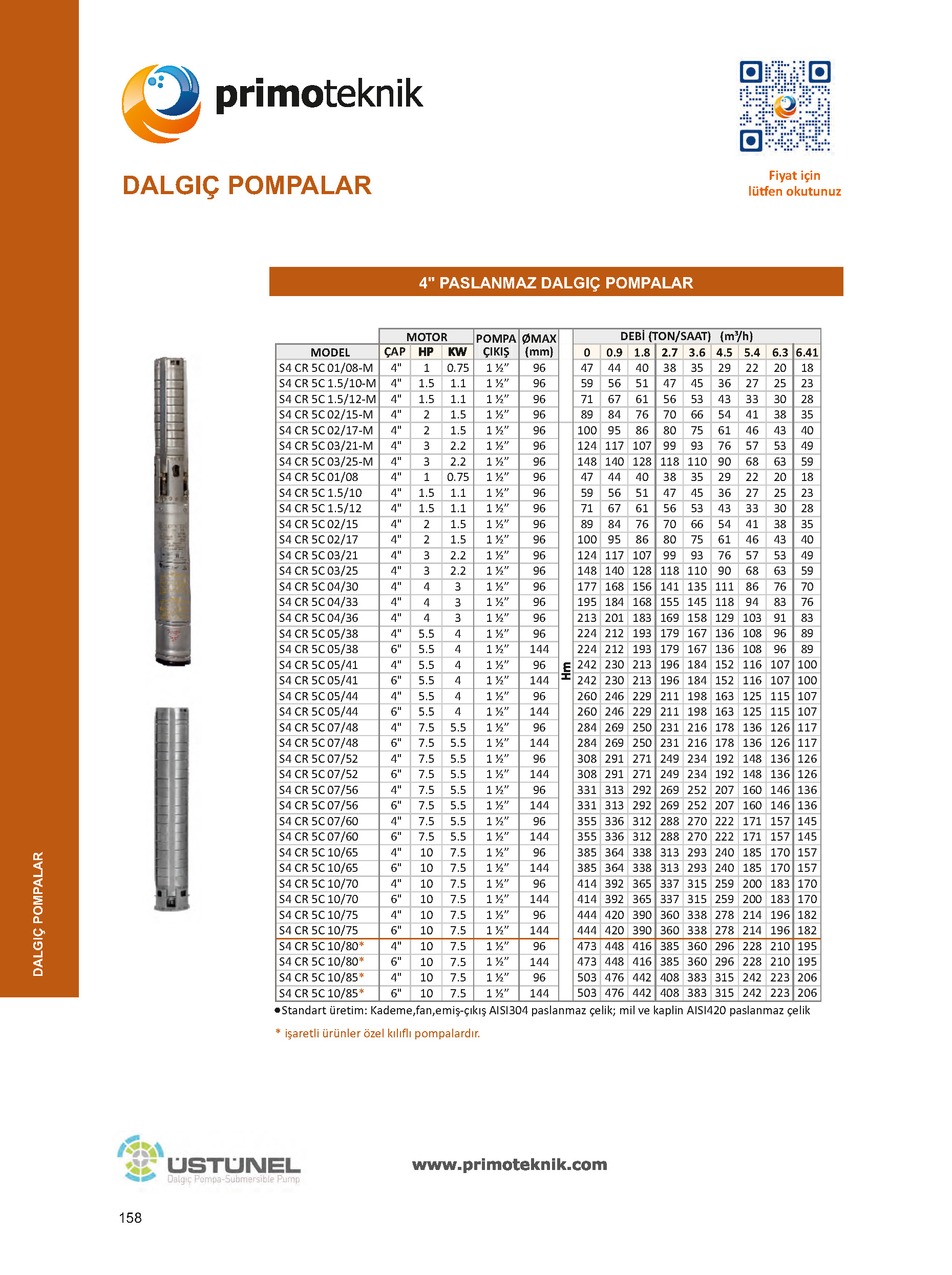

S4 CR 5C SERİSİ

POMPAKADEMEMOTORÇIKIŞ QMAXLt/s0,000,220,440,670,891,111,331,561,78
TİPİSAYISIHPKW (mm)M3/h0,000,801,602,403,204,004,805,606,40
S4CR5C01/08810,751 1/2"96













HMT

504843424140383020
S4CR5C1.5/10101,51,11 1/2"96645854525150453828
S4CR5C1.5/12121,51,11 1/2"96767168646158514433
S4CR5C02/151521,51 1/2"96989081787370605039
S4CR5C02/171721,51 1/2"96117105100949082736044
S4CR5CO3/212132,21 1/2"96133127122120112102907559
S4CR5C03/252532,21 1/2"961601501421381301201038768
S4CR5C04/3030431 1/2"9618717616816015014012010075
S4CR5C04/3333431 1/2"9621020019018017015713811487
S4CR5C04/3636431 1/2"9623021420419718717015412493
S4CR5CO5/38385,541 1/2"96/144248234222214207190167138101
S4CR5CO5/41415,541 1/2"96/144264248237228217200172144110
S4CR5C05/44445,541 1/2"96/144279262250240229210183150118
S4CR5C07/48487,55,51 1/2"96/144302284270262250230202168130
S4CR5C07/52527,55,51 1/2"96/144330312300288272252224185141
S4CR5C07/56567,55,51 1/2"96/144357334318308290268234196152
S4CR5C07/60607,55,51 1/2"96/144390360342330314288250210160
S4CR5C10/6565107,51 1/2"96/144417395374358339310270223170
S4CR5C10/7070107,51 1/2"96/144438418397380363330290240180
S4CR5C10/7575107,51 1/2"96/144480454430412390360314258195
S4CR5C10/80*80107,51 1/2"96/144510478454434415380332274205
S4CR5C10/85*85107,51 1/2"96/144544512485462440402350288212

Verimlilik aralığı: 3.2-5.6  M3/h   ,  Qmax: 144 mm olanlarda 6" motor kullanılmalıdır

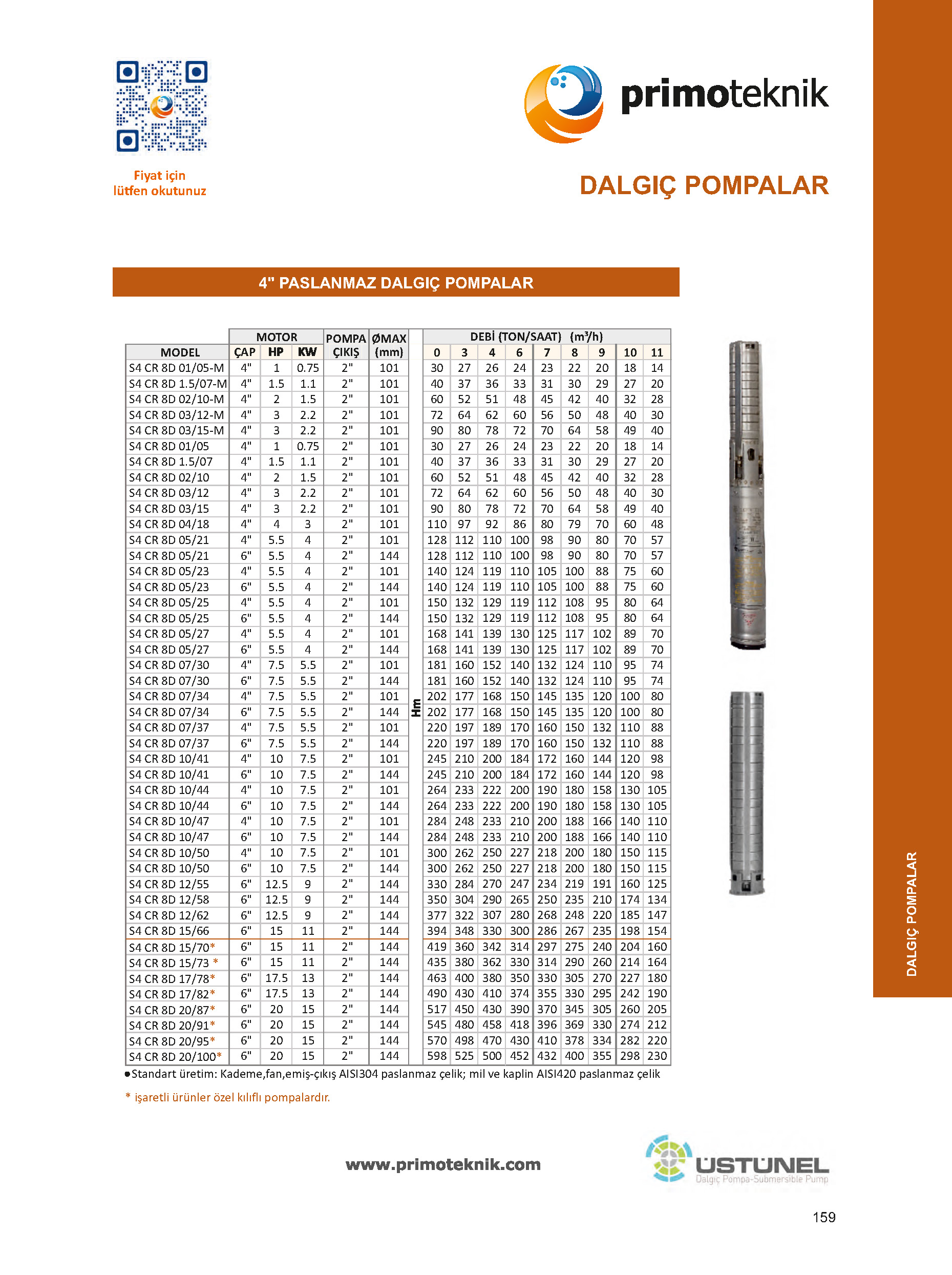

S4 CR 8 D SERİSİ

POMPAKADEMEMOTORÇIKIŞQMAXLt/s0,000,220,560,831,111,391,671,942,222,502,783,06
TİPİSAYISIHPKW (mm)M3/h0,001,002,003,004,005,006,007,008,009,0010,0011,00
S4 CR 8 D 01/05510,752"101

















HMT

302928272625242322201814
S4CR8D1.5/0771,51,12"101403938373635333130292720
S4CR8D02/101021,52"101605955525150484542403228
S4CR8D03/121232,22"101727068646261605650484030
S4CR8D03/151532,22"101908882807874727064584940
S4CR8D04/1818432"101110105100979290868079706048
S4CR8D05/21215,542"101/1441281221201121101041009890807057
S4CR8D05/23235,542"101/144140138130124119112110105100887560
S4CR8D05/25255,542"101/144150145140132129121119112108958064
S4CR8D05/27275,542"101/1441681601501411391341301251171028970
S4CR8D07/30307,55,52"101/1441811751681601521491401321241109574
S4CR8D07/34347,55,52"101/14420219318417716816015014513512010080
S4CR8D07/37377,55,52"101/14422021220419718918017016015013211088
S4CR8D10/4141107,52"101/14424523422221020019218417216014412098
S4CR8D10/4444107,52"101/144264254244233222212200190180158130105
S4CR8D10/4747107,52"101/144284270260248233220210200188166140110
S4CR8D10/5050107,52"101/144300289274262250238227218200180150115
S4CR8D12/555512,592"144330315300284270258247234219191160125
S4CR8D12/585812,592"144350334320304290278265250235210174134
S4CR8D12/626212,592"144377360340322307290280268248220185147
S4CR8D15/666615112"144394380362348330317300286267235198154
S4CR8D15/70*7015112"144419400380360342330314297275240204160
S4CR8D15/73*7315112"144435418400380362348330314290260214164
S4CR8D17/78*7817,5132"144463442420400380365350330305270227180
S4CR8D17/82*8217,5132"144490470450430410390374355330295242190
S4CR8D20/87*8720152"144517494470450430410390370345305260205
S4CR8D20/91*9120152"144545523500480458438418396369330274212
S4CR8D20/95*9520152"144570548522498470450430410378334282220
S4CR8D20/100*10020152"144598574550525500476452432400355298230

 (*) işaretli olanlar özel kılıflı pompalardır, Qmax: 144 mm olanlarda 6" motor kullanılmalıdır

Verimlilik aralığı: 7-9  M3/h
