Prepherical Pumps

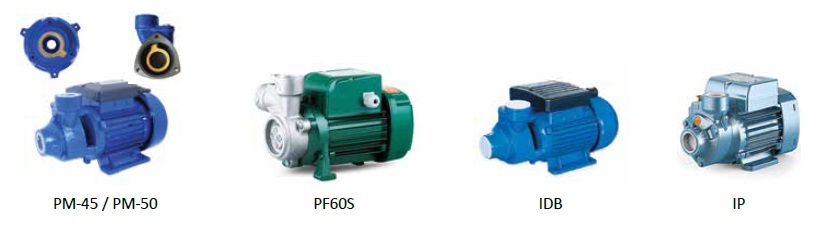

PREPHERICAL PUMPS
| POWER-VOLTAGE | PUMP | FLOW (m³/h) | ||||||||||||
| CODE | MODEL | HP | KW | V | SUCTION | DELIVERY | 0 | 0.3 | 0.9 | 1.2 | 1.5 | 2 | 3 | |
| WS-01 | PM-45 | 0.5 | 0.37 | 220 | 1" | 1" | Hm | 35 | 33 | 24 | 18 | 10 | 3 | 0 |
| WS-02 | PM-50 | 1 | 0.75 | 220 | 1" | 1" | 60 | 55 | 47 | 43 | 40 | 29 | 5 | |
Max. Ambient temperature +40 ˚C, Max. Liquid temperature +80 ˚C, Max.suction lift up: 6-7 meter, Brass impeller, brass channel is used im PM-45 model, Thermal protected, Pump weight PM-45: 5.8 kg, PM-50: 9.5 kg
SS 304 SHAFT PREPHERICAL PUMPS
| POWER-VOLTAGE | PUMP | FLOW (m³/h) | ||||||||||||
| CODE | MODEL | HP | KW | V | SUCTION | DELIVERY | 0 | 0.3 | 0.6 | 1.2 | 1.8 | 2.1 | 2.4 | |
| WS-24 | IDB-40 | 0.5 | 0.37 | 220 | 1" | 1" |
Hm | 40 | 36 | 32 | 22 | 12 | 7 | 2 |
| WS-25 | IDB-70 | 1 | 0.75 | 220 | 1" | 1" | 72 | 64 | 56 | 42 | 28 | 21 | 14 | |
| WS-23 | IDB-70T | 1 | 0.75 | 380 | 1" | 1" | 72 | 64 | 56 | 42 | 28 | 21 | 14 | |
Max. Ambient temperature +40 ˚C, Max. Liquid temperature +80 ˚C, Max.suction lift up: 6-7 meter, Brass impeller, brass channel is used in IDB-40 model, Stainless steel weilding shaft, Resistant to heat, thermal protected, Pump weight: IDB-40: 5.8 kg, IDB-80: 9.5 kg
