Special Centrifugal Pumps

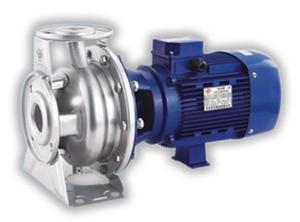

STAINLESS STEEL HOT WATER CENTRIFUGAL PUMPS

		POWER/VOLTAGE			PUMP			FLOW (m³/h)
CODE	MODEL	HP	KW	V	SUCTION	DELIVERY		0	6	9	12	18	20	22
WS-2505	GZA(S) 50-32-200/3	4	3	380	DN50	DN40	Hm Hm	45	41	40	38	34	32
WS-2506	GZA(S) 50-32-200/4	5.5	4	380	DN50	DN40		55	51	50	49	46	45	43
								0	10	20	30	40	50	60
WS-2507	GZA 65-50-160/5.5T	7.5	5.5	380	DN65	DN50		36	34.5	34	31.5	28.5	24	20
WS-2508	GZA 65-50-160/7.5T	10	7.5	380	DN65	DN50		43	41	40.5	39	36	32	27.5

Max. Liquid temperature +110 ˚C, Max.suction lift up: 4 meter, All surfaces contacted water are made of stainless steel, Pump Weight: GZA(s) 50-32 200/3…35 kg, GZA(s) 50-32 200/4…42 kg, GZA 65-50-160/5.5 ..49 kg, GZA 65-50-160/7.5 ..60 kg

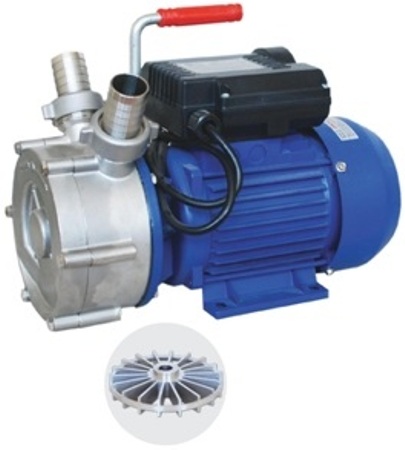

SELF PRIMING TWO WAYS STAINLESS STEEL CASING OIL TRANSFER ELECTRICPUMPS

		POWER-VOLTAGE			PUMP			FLOW (m³/h)
CODE	MODEL	HP	KW	V	SUCTION	DELIVERY	Hm	0	0.6	0.9	1.2	1.8	3	3.4
WS-2515	BEM-20	0.6	0.45	220	3/4"	3/4"		18	13	10	8	4
WS-2516	BEM-35	1.1	0.8	220	1 1/4"	1 1/4"		14	13	12	11	9	5	4

Max. Ambient temperature +40 ˚C, Max. Liquid temperature +40 ˚C, Max.suction lift up: 6 meter, Stainless Steel impeller and pump casing, It is used for transfering of liquids such as fruit juices, vinegar, oil and wine, Pump Weight: BEM 20…20 kg, BEM 35….11kg

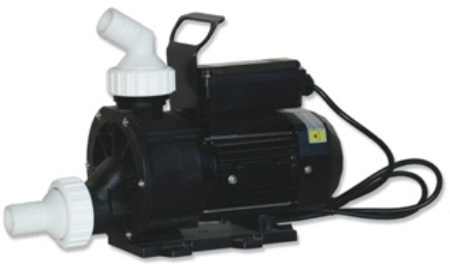

PLASTIC CASING SALTY TRANSFER PUMP

		POWER-VOLTAGE			PUMP			FLOW (m³/h)
CODE	MODEL	HP	KW	V	SUCTION	DELIVERY		0	3	6	7.5	8.5	10	11
WS-2510	TDA50	0.5	0.37	220	2"	2"	Hm	10	9	8	7	6	5	4

Plastic impeller, Stainless Steel SS316 welding shaft, On/off Switch, 1.5 m cable and plug, Acid resistant resin special paint is used in the motor housing, Mechanical seal ,s carbon/sic/viton/SUS316, Thermal protection, Pump weight: 6 kg
